High-performance PCE water reducers for superior strength, workability & durability.
Are you struggling with achieving the desired strength and durability in your shotcrete applications? Are you facing challenges with workability and placement in complex or confined spaces? Then superplasticizers (also known as high-range water reducers or HRWRs) might be exactly what you need to revolutionize your shotcrete mixes.
As POLLYFLEX, a leading provider of concrete admixtures, I want to share my expertise on how these powerful additives can significantly enhance your shotcrete projects.
Superplasticizers, or high-range water reducers (HRWRs), are chemical admixtures added to shotcrete mixes to significantly enhance their properties. Think of them as the "muscle relaxers" for your concrete. They allow you to achieve the same workability with significantly less water, typically reducing water content by 15-40%.
This seemingly simple change unlocks a cascade of benefits, leading to stronger, more durable, and easier-to-apply shotcrete.
| Property | Polycarboxylate Superplasticizer | Naphthalene Superplasticizer | Sulfonated Melamine Superplasticizer |
|---|---|---|---|
| Chemical Composition | Long-chain polymer with anionic backbones and polyether side chains | Naphthalene sulfonates reacted with formaldehyde | Melamine sulfonates reacted with formaldehyde |
| Water Reduction | High (20–40%) | Moderate (12–30%) | Moderate (15–25%) |
| Workability | Excellent, long-lasting slump retention | Good, but prone to slump loss over time | Good, moderate slump retention |
| Setting Time | Adjustable (can retard or accelerate) | Slightly retarding, less controllable | Slightly retarding, moderate control |
| Strength | High early and long-term strength | Good early strength, lower long-term strength | High early strength, moderate long-term strength |
| Compatibility | May be incompatible with some admixtures (e.g., air-entraining agents) | High compatibility with most admixtures | Moderate compatibility, better than PCE |
| Cost | Higher cost, but efficient for large projects | Cost-effective, widely used | Moderate cost, less common |
| Applications | High-performance concrete, self-compacting concrete (SCC), high-strength concrete (HSC), architectural finishes | General-purpose concrete, standard precast elements | Precast concrete, applications requiring early strength |
| Mechanism | Electrostatic repulsion and steric hindrance | Electrostatic repulsion | Electrostatic repulsion |
| Limitations | Higher cost, potential admixture incompatibility | Slump loss, moderate water reduction | Moderate performance, less versatile |

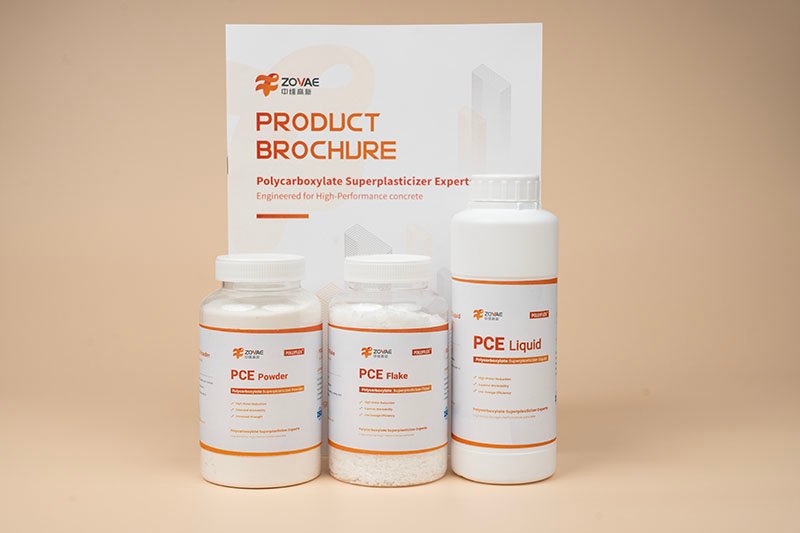

At POLLYFLEX, we understand the critical role that superplasticizers play in achieving optimal shotcrete performance. Our POLLYFLEX line of superplasticizers is specifically formulated to meet the demanding requirements of modern shotcrete applications. As highlighted by sources such as Wikipedia and EFCA, these admixtures are vital for enhancing concrete's workability and durability.

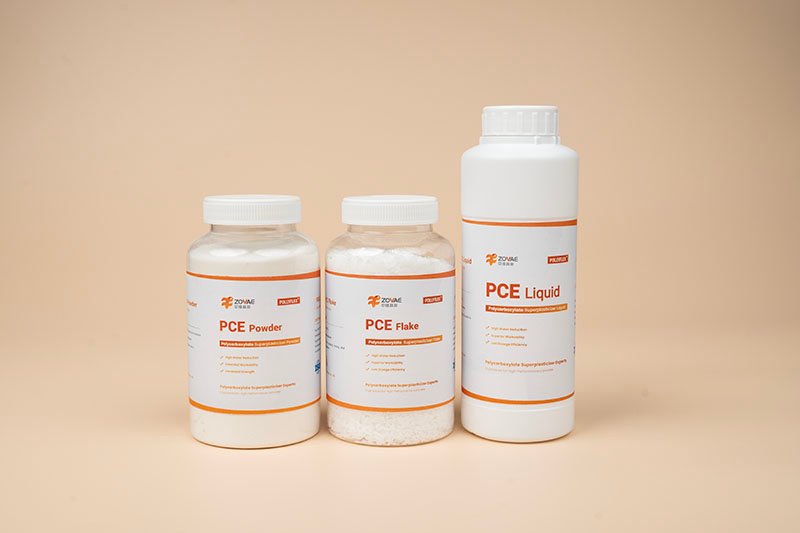

Our products are based on advanced Polycarboxylate Ether (PCE) technology, providing superior water reduction and slump retention compared to traditional superplasticizers. We offer optimized formulations for shotcrete applications, enhancing adhesion, reducing rebound, and improving early strength development.
| Product Name | Effective content (%) | Water Reduction (%) | Slump Retention (hrs) | Main Features | Recommended Dosage (%) |
|---|---|---|---|---|---|
| POLLYFLEX 670 | 97 ± 1 | ≥ 25 | 3 | Premium quality for standard SCC applications, offering excellent workability and cost-effectiveness. | 0.2 - 1.0 |
| POLLYFLEX 680 | 97 ± 1 | ≥ 30 | 3 | Enhanced water reduction, ideal for high-performance SCC with superior flow and strength characteristics. | 0.2 - 1.0 |
| POLLYFLEX 690 | 97 ± 1 | ≥ 25 | 4 | Exceptional slump retention, ideal for demanding environments requiring superior durability. | 0.2 - 1.0 |
The integration of PCE into shotcrete mixes unlocks a multitude of benefits, surpassing traditional admixtures in many aspects. Here are some key advantages:
PCE can significantly accelerate the early strength development of shotcrete, allowing for faster project turnaround times.
PCE helps shotcrete retain its workability for a longer period. This is particularly important in hot weather conditions or when the shotcrete needs to be transported over long distances.
PCEs extend the working time of shotcrete, giving applicators more flexibility during placement.
One of the most significant benefits is the enhancement of adhesion to the substrate. PCEs promote better bonding, resulting in reduced rebound.

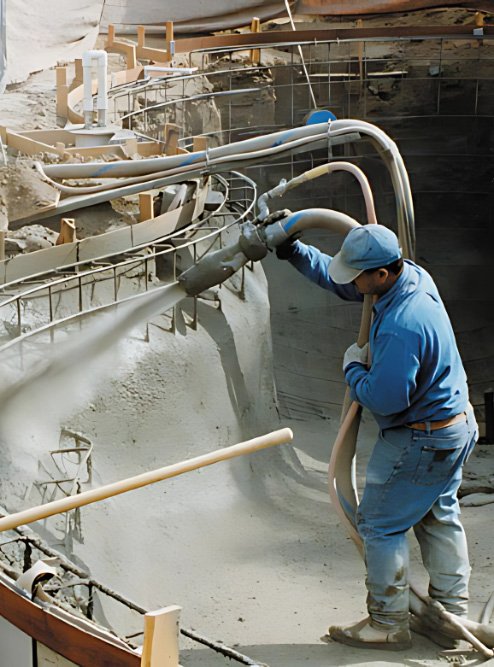

The reduced water-cement ratio achieved with PCEs leads to denser, less permeable shotcrete, making it more resistant to aggressive environmental factors.

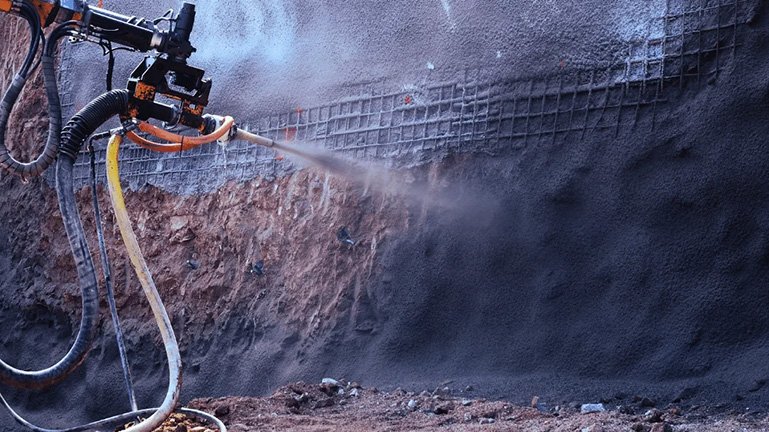

PCEs aren't a one-size-fits-all solution. They are tailored to different performance levels in shotcrete applications. Understanding these classifications is critical for optimal results. At POLLYFLEX, we categorize them as follows:
In standard shotcrete mixes, PCEs primarily serve to improve workability and reduce water content, leading to enhanced placement and reduced rebound.
For demanding applications requiring high early strength and long-term durability, specially formulated PCEs are used. These PCEs are often combined with other admixtures, such as accelerators and fibers.
PCEs are essential components of SCS mixes, allowing for placement in congested areas without vibration. These PCEs provide exceptional flowability and cohesion.
This classification helps us at POLLYFLEX to recommend the right product for your specific needs.
Choosing the right shotcrete superplasticizer depends on several factors:
| Problem | Solution with POLLYFLEX Superplasticizers |
|---|---|
| Excessive Rebound |
Problem: High rebound rates lead to material waste, increased cleanup costs, and potential safety hazards.
Solution: POLLYFLEX increases the cohesiveness of the mix, reducing rebound and ensuring more material adheres to the substrate. |
| Poor Adhesion to Substrate |
Problem: Weak bond strength can result in delamination and cracking, compromising the structural integrity of the shotcrete lining.
Solution: POLLYFLEX enhances the adhesion properties of the shotcrete, creating a strong and durable bond with the substrate, even on challenging surfaces. |
| Rapid Slump Loss and Difficult Placement |
Problem: Slump loss makes the shotcrete difficult to pump and spray, leading to inconsistent application and reduced productivity.
Solution: POLLYFLEX provides excellent slump retention, maintaining workability over extended periods and facilitating smooth and efficient placement, even in remote or difficult-to-access locations. |
Key Success Tip: Always conduct trial mixes to determine the optimal dosage for your specific materials and application conditions.

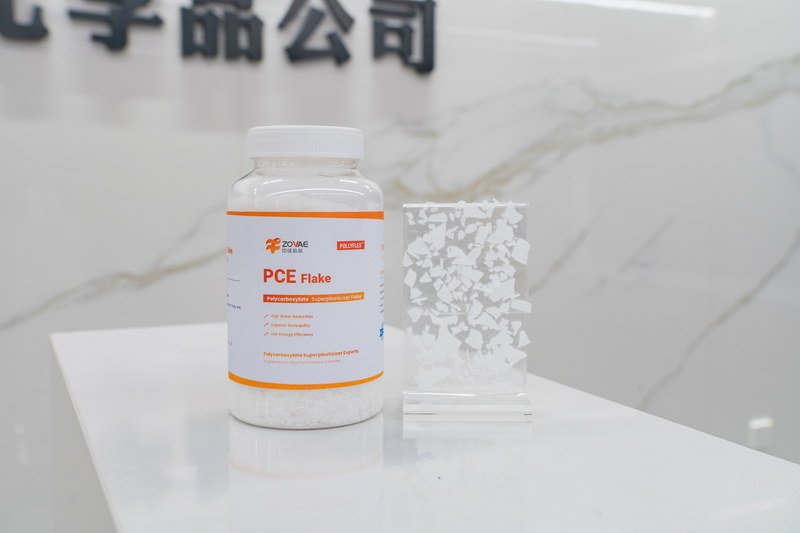

Our state-of-the-art manufacturing facility is ISO 9001 certified and equipped with advanced technology. Our dedicated R&D team is constantly innovating and developing new superplasticizer formulations to meet the evolving needs of the shotcrete industry. We utilize sophisticated testing equipment to ensure consistent product performance and reliability. We are committed to providing our customers with the highest quality products and exceptional technical support.
Superplasticizers are essential for achieving high-performance shotcrete. POLLYFLEX offers a reliable and cost-effective solution for improving workability, strength, and durability. Contact POLLYFLEX today to request a free sample and discover how our superplasticizers can benefit your next shotcrete project. Let us help you build stronger, more durable, and more sustainable structures.
Explore our range of POLLYFLEX products and find the perfect superplasticizer for your shotcrete needs. Don't hesitate to contact our technical team for tailored advice and support on optimizing your shotcrete mix for superior results.
